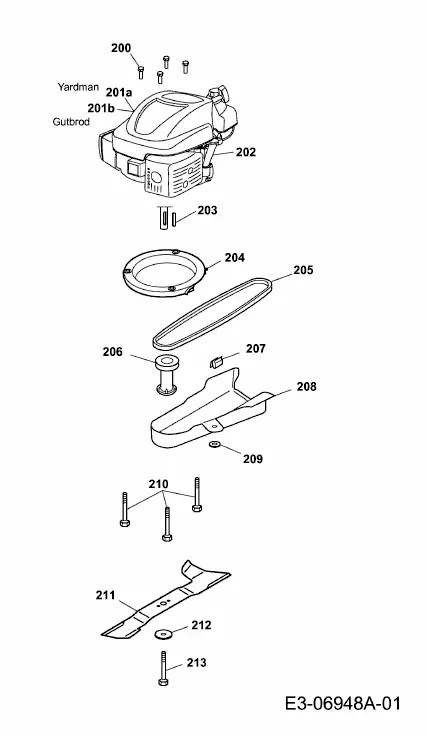

Blade, Blade adapter, Engine
Blade, Blade adapter, Engine
| П-п | Арт | Название |
|---|---|---|
| 200 | SCREW:HL:#12-16:1.000:HXWSHHD FINISH:SCHWARZ VERZ. 701-01010 | |
| 201A | ENGINE SHROUD:M4:YM:W/O LBL. FINISH:NONE | |
| 201B | COVER ENGINE ASSY. M4 GUTBROD | |
| 202 | ENGINE 173 CC OHV VERTIC SHAFT 1P70RH PRIMER VERSION | |
| 203 | KEY, FOR CRANKSHAFT -DIN6885, mit Absatz Thorx | |
| 204 | FLANGE SCHWARZ RAL 9005 | |
| 205 | V-BELT 10 x 775 39225 | |
| 206 | CUTTER BAR FLANGE, with drive 4218405 | |
| 207 | CLAMP /53BA | |
| 208 | BELT GUARD 4218316 | |
| 209 | WASHER | |
| 210 | SCR:TTSEMS:3/8-16:1.875:HXLWSH FINISH:MTD STD 701-01002 | |
| 211 | BLADE 4218400 | |
| 212 | spring washer dacrom. ~ | |
| 213 | 6kt.-screw 3/8\\\" 17-10.9 ~ |
