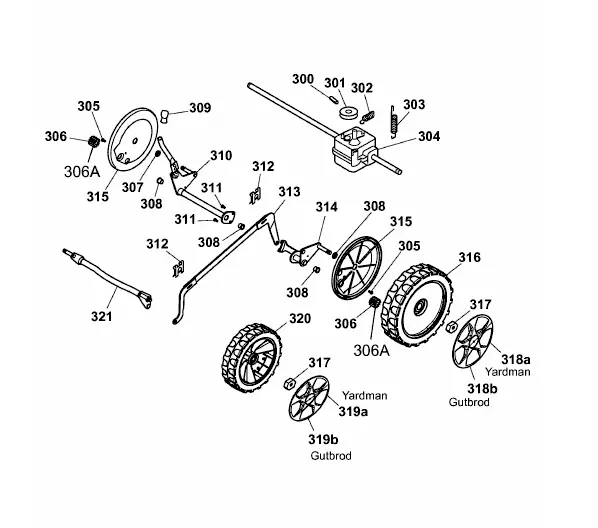

Gearbox, Wheels
Gearbox, Wheels
| П-п | Арт | Название |
|---|---|---|
| 300 | DOWEL PIN 1097202 // 33706 | |
| 301 | V-BELT PULLEY 1304 | |
| 302 | Zugfeder für Klauenkupplungsge triebe | |
| 303 | GEAR SPRING 2.48BA/2.53BA A | |
| 304 | 1082002 ighwheeler | |
| 305 | SCREW M5X12-WN1352-10.9 ercol schw | |
| 306 | gear wheel 40/18 z=15 ohne Lager / TN-Lager 1082101 | |
| 306A | FREEWHEEL HF1216B INA Nr.1372 137226-2 | |
| 307 | WASHER N.ZCHN | |
| 308 | BUSH, FLANGED d=12 e 15) | |
| 309 | ADJUSTING LEVER ver. | |
| 310 | TRANSMISSION AXLE RIGHT PAINTE schwarz | |
| 311 | SCREW HICHTET | |
| 312 | RETAINING CLIP NACH ZEICHNUNG / 0020981 | |
| 313 | connecting rod 8 A HW | |
| 314 | TRANSMISSION AXLE LEFT PAINTED schwarz | |
| 315 | dust cover 4238320 | |
| 316 | wheel 280 l 12,1 | |
| 317 | NUT M12H8 Din 985-8 16886 | |
| 318A | WHEEL COVER XXL 280 MTD NUMMER:731-07604 | |
| 318B | WHEEL CAP XXL 280 MTD NUMMER:731-07645 | |
| 319A | WHEEL CAP D200 MTD NUMMER:731-07602 | |
| 319B | WHEEL CAP MTD NUMMER:731-07603 | |
| 320 | wheel 200 4238050 | |
| 321 | FRONT AXLE 48 CM PAINTED warz |
