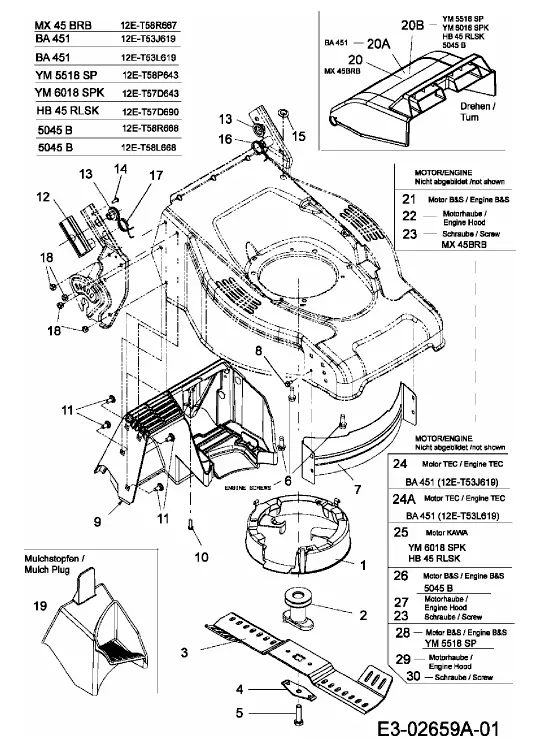

Blade, Blade adapter, Engine
Blade, Blade adapter, Engine
| П-п | Арт | Название |
|---|---|---|
| 1 | BFL:DECK:CNTR | |
| 2 | ADAP:BLADE:22\\\" ONE PIECE 748-04016A | |
| 3 | BLADE:45cm:T-DECK W/STAR FINISH:LACKIERT | |
| 4 | BLADE BELL SUPP. SPRING STEEL FINISH:SIEHE ZG. | |
| 5 | HHCS:3/8-24:1.50:GR8:SPEC FINISH:SIEHE ZG | |
| 6 | SCR:TTSEMS:3/8-16:1.000:HXLWSH FINISH:MTD SPEC-701-01002 | |
| 7 | ||
| 8 | SCR:M6x1:12 MM:DIN 7500 DIN 7500 MTD SPEC-100015 | |
| 9 | BFL:RR:T DECK | |
| 10 | SCR:TORX:M6x20 WN 1452 MTD SPEC-100015 000.02.493 | |
| 11 | SCR:SHLDR:12mm SQ:M8 CUSTOM 710-04217 | |
| 12 | HANDLE BRACKET SIEHE GUTBROD# 079.06.308 | |
| 13 | SCHWARZ RAL 9005 (079.06.307) SCHWARZ RAL 9005 (079.06.307) | |
| 14 | SCR:TORX:50x14:WN 1451 MTD SPEC-100015 000.02.499 | |
| 15 | GROM:.52IDX.66ODX.31 AUßEN Ò 20mm FINISH:SCHWARZ | |
| 16 | TORSION SPRING FINISH:GLANZVERZINKT | |
| 17 | TORSION SPRING FINISH:MTD SPEC-100015 | |
| 18 | NUT:HEXLK:M8-1.25 NYLON DIN985 FINISH:SPEC-100015 24.1426.18 | |
| 19 | PLUG:MULCH:T-DECK 731-04635 | |
| 20 | REAR FLAP ZINC YELLOW MOOSGRÜN RAL 6005 731-1822A668 | |
| 20A | REAR FLAP ZINC YELLOW MELONENG. RAL1028 731-1822A708 | |
| 20B | REAR FLAP ZINC YELLOW SCHWARZ RAL 9005 731-1822A637 | |
| 21 | ENGINE B&S QUANTUM 12F802-1904-B1 190 CC | |
| 22 | HOOD, ENGINE 751B698269 | |
| 23 | SCREW B&S ZYLINDERKREUZSCHRAUBE | |
| 24 | ENGINE | |
| 24A | B-MTR TEC LV195 EA 500-362076 752T362076 | |
| 25 | MOTOR KAWA 6.0HP FJ 180 FJ180V-AS50 | |
| 26 | B&S ENGINE 12H802-1931-B1 EASY PULL | |
| 27 | ENGINE COVER B&S XRQ METALLIC SILBER | |
| 28 | B&S ENGINE 128802-1905-B1 190CC | |
| 29 | ENGINE HOOD YELLOW | |
| 30 | SCR:HL:#8-18:1.250:PANPHI FINISH:701-01002 |
