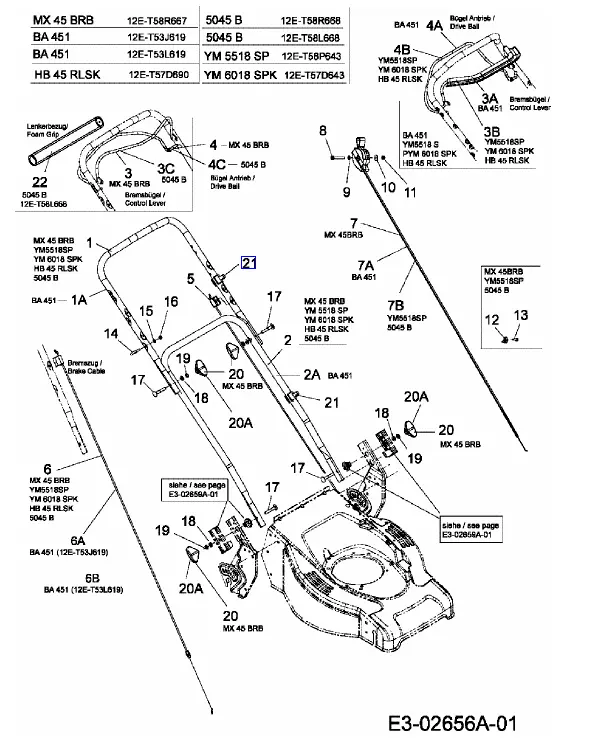

Control cables, Handle
Control cables, Handle
| П-п | Арт | Название |
|---|---|---|
| 1 | HNDL:UPR:GW GAS SP/PUSH FINISH:LACKIERT | |
| 1A | HNDL:UPR:ERGO GAS SP/PUSH FINISH:LACKIERT | |
| 2 | HNDL:LWR:GW ELE/GAS FINISH:LACKIERT | |
| 2A | HNDL:LOWER:ERGO:GAS FINISH:LACKIERT | |
| 3 | BRAKE BAIL MOSSGRÜN RAL 6005 GEPULVERT | |
| 3A | BRAKE BAIL MODIFIED ERGO FÜR ERGOHOLM MODIFIZIERT | |
| 3B | BRAKE BAIL BÜGEL 747-1074:PLASITK SCHWARZ | |
| 3C | BRAKE BAIL SCHWARZ GEPULVERT | |
| 4 | BAIL:DR:GULLWING:GAS:T-DECK GAS FINISH:LACKIERT | |
| 4A | BAIL:DRIVE GAS FINISH:LACKIERT | |
| 4B | LVR:CONT:DRIVE:GULLWING BLACK GULLWING SCHWARZ | |
| 4C | BAIL:DR:GULLWING:GAS:T-DECK GAS FINISH:LACKIERT | |
| 5 | CBL:TRANS:T-DECK:GAS | |
| 6 | BRAKE CABLE GW-HOLM/B&S-BREMSE L2=1310 LTQ | |
| 6A | BRAKE CABLE 1318.00 MM TEC | |
| 6B | CBL:CONT:1210mm EXPORT:ERS 746-04335 1210MM | |
| 7 | THROTTLE CONTROL + CABLE B&S MOOSGRÜN RAL 6005 | |
| 7A | THROTTLE CABLE TECUMSEH FERNBEDIENUNG:SCHWARZ | |
| 7B | B&S - SCHWARZ B&S - SCHWARZ | |
| 8 | SCR:M6x50mm:DIN 7985 FINISH:GELBVERZINKT | |
| 9 | WASH: FLAT: 6.4x12x1.6 FINISH:SPEC-10016 24.6481.14 | |
| 10 | WASH:FLAT:6.4 IDX18OD DIN 9021 MTD SPEC 100015 24.6486.16 | |
| 11 | NUT:HEXLK:M6-1:NYLON:DIN 985 MTD SPEC-100015 24.1426.14 | |
| 12 | CLAMP:CASING 751B221535 | |
| 13 | SCR:T:#10-32:0.625:HXINDWSH FINISH:MTD STD 701-01002 | |
| 14 | BOLT:EYE:M6 GELBVERZINKT 000.02.621 | |
| 15 | WASH: FLAT: 6.4x12x1.6 FINISH:SPEC-10016 24.6481.14 | |
| 16 | NUT:HEXLK:M6-1:NYLON:DIN 985 MTD SPEC-100015 24.1426.14 | |
| 17 | BOLT:CRG:M8x1.25x50 DIN 603 MTD-SPEC-100015 22.3419.32 | |
| 18 | WASH:FLAT:8.4 x 16 x 1.60 MTD SPEC-100015 24.6481.18 | |
| 19 | WASH:LOCK:B 8.4:DIN 6798 MTD SPEC-100015 24.8191.18 | |
| 20 | WING NUT RAL 6005 (720-0368) | |
| 20A | WING NUT (000.02.377)schwarz | |
| 21 | CABLE GUIDE FARBE:SCHWARZ | |
| 22 | GRIP:FOAM:HNDL 22\\\" W/SKIN |
