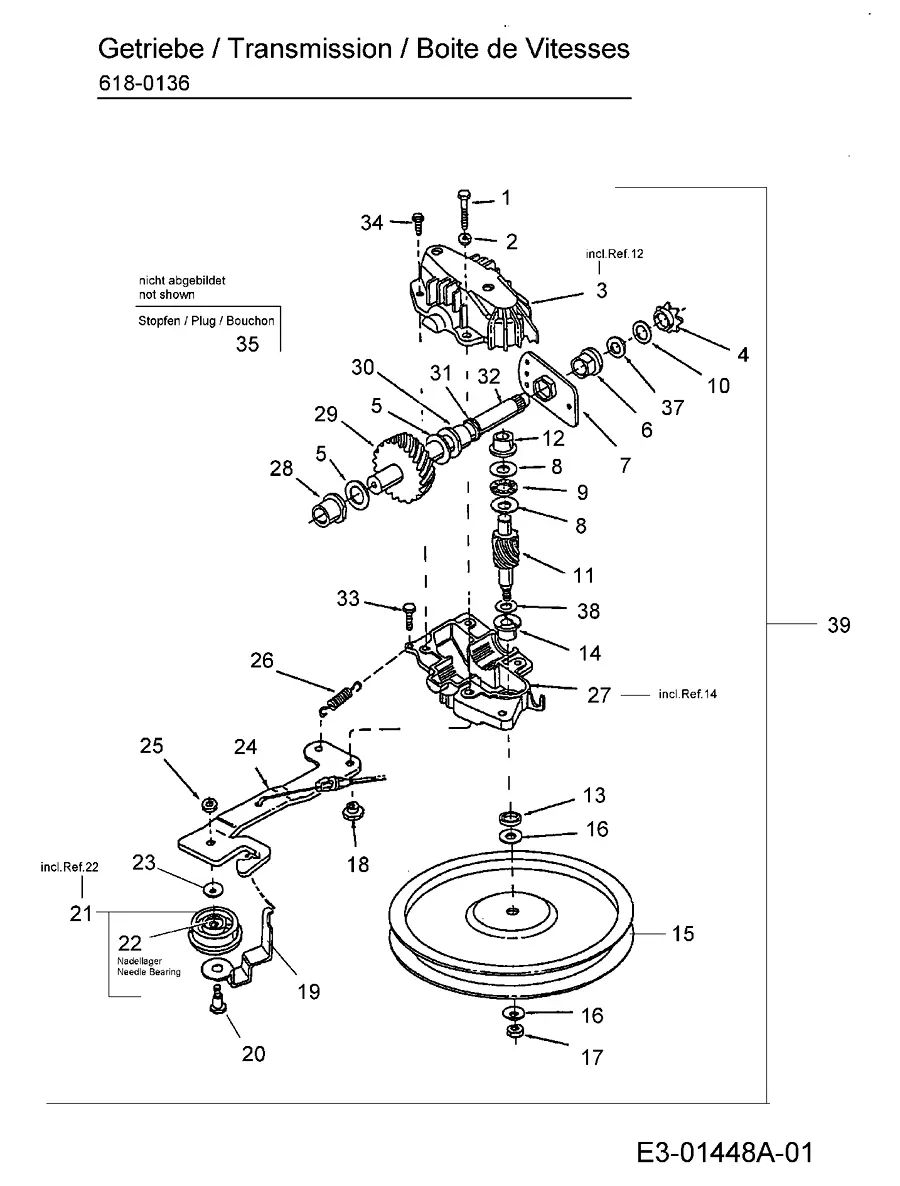

01 GEARBOX
01 GEARBOX
| П-п | Арт | Название |
|---|---|---|
| 1 | HHCS:1/4-20:1.25:GR5:LOCK | |
| 2 | WASHER:LOCK:1/4:REGULAR DUTY | |
| 3 | UPPER HSG. HALF ,INCL. REF.#12 | |
| 4 |  |
SPROCKET-6 TOOTH |
| 5 |  |
WASH:SHIM:.625x1.000x.030:HD |
| 6 |  |
BRG:FLG:HEX:.506 IDX .590LG |
| 7 |  |
PLATE |
| 8 |  |
WASH:THRST:.375x.700x.030 |
| 9 |  |
THRUST BEARING: .375 X .812 |
| 10 |  |
WASH:FL:.469 X .750 X .06 |
| 11 |  |
SHAFT-PINION 10 TEETH |
| 12 |  |
FLANGE BEARING |
| 13 |  |
OIL SEAL: .500 X .687 X .094 |
| 14 |  |
BEARING-FLANGE |
| 15 |  |
V-BELT PULLEY |
| 16 |  |
WASH:BELL:.325 x .930 x .045 |
| 17 |  |
NUT:JAM:5/16-24 LH:GR2 |
| 18 |  |
COLLAR |
| 19 |  |
KEEPER:BELT:SP TRANS |
| 20 |  |
SCR:SHLDR:1/4-28 X .375 |
| 21 |  |
PULLEY ASSY-IDLER |
| 22 |  |
NEEDLE-BEARING .375 ID |
| 23 |  |
WASHER:BLVL:.265 x .750 x .060 |
| 24 |  |
BRACKET PIVOT |
| 25 |  |
NUT:1/4-28:GRA:HX |
| 26 |  |
SPR:EXTN: .33 OD x 1.12 |
| 27 |  |
HSG-LOWER-TRANS |
| 28 |  |
FLANGE BEARING |
| 29 |  |
GEAR-HELICAL 34 TEETH |
| 30 |  |
FLANGE BEARING |
| 31 |  |
SEAL:.625 .812X.094 |
| 32 |  |
AXLE |
| 33 |  |
SCR:AB:#10-16:0.750:HXINDWSH |
| 34 |  |
SCR:B:#10-16:0.625:HEX |
| 35 |  |
GREASE PLUG |
| 37 |  |
WASH:THRST:.508x1.000x.020 |
| 38 |  |
WASH:THRST:.504 x .700 x .030 |
| 39 |  |
TRANSMISSION |
