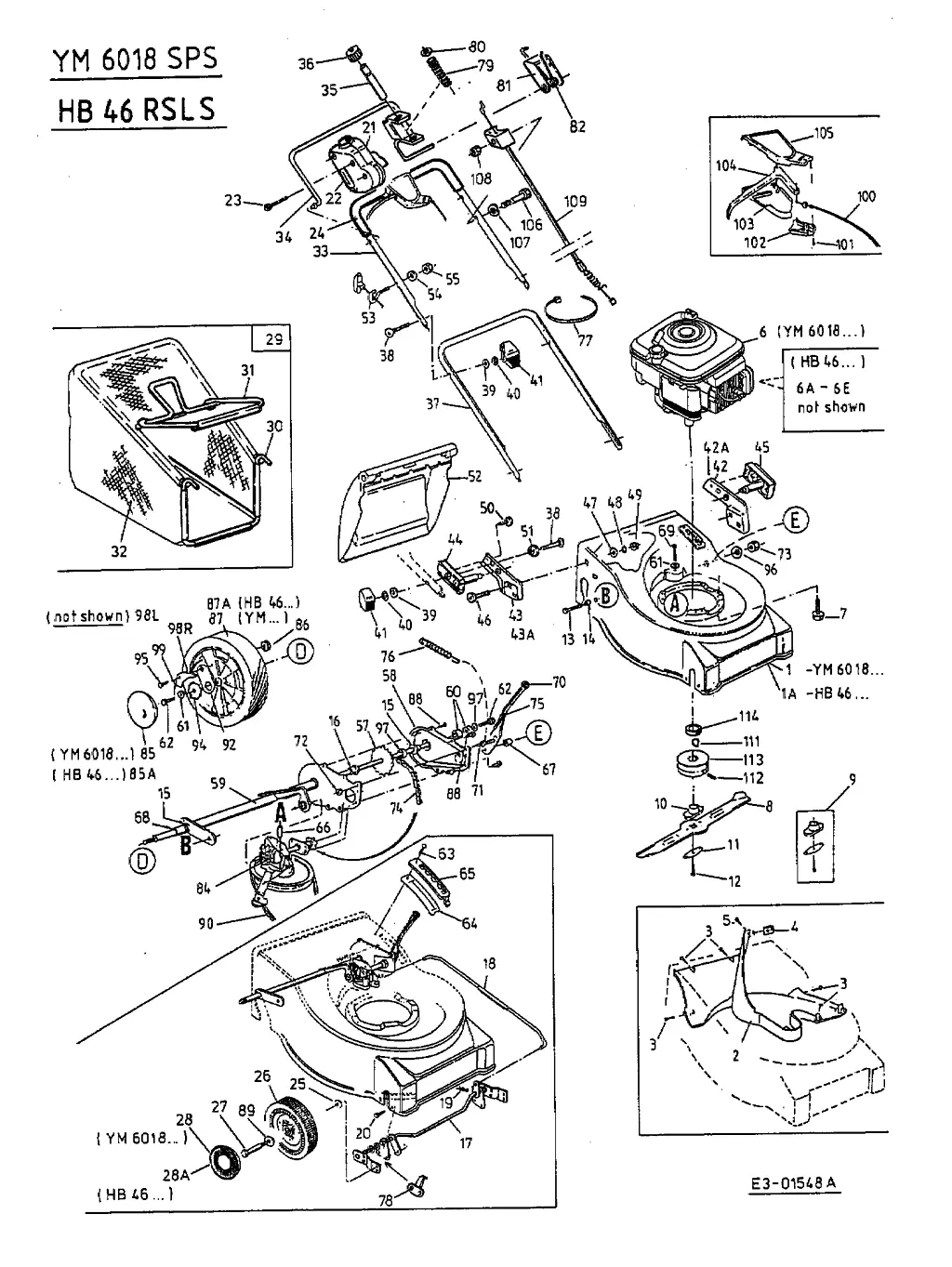

02 BASIC MACHINE
02 BASIC MACHINE
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
MOWER HOUSING YM 6018 |
| 1A |  |
MOWER HOUSING YM 6018 |
| 2 |  |
LOWER COVER |
| 3 |  |
SCR:TORX:M6x20 WN 1452 |
| 4 |  |
U-NUT: # 10-16 |
| 5 |  |
SCR:B:#10-16:0.5\\\":PANPHI |
| 6 |  |
ENGINE B&S QUAN |
| 6A |  |
B-MOTOR 12H809-1754-B1 6.0 HP |
| 6B |  |
EXHAUST PROTECTION |
| 6C |  |
HEX. SCREW:B:#10-16:0.375 |
| 6D |  |
SHRD-ENG-XTL-OYSTERGRAY |
| 6E |  |
SCR:HL:#8-18:1.250:PANPHI |
| 7 |  |
SCR:TTSEMS:3/8-16:1.000:HXLWSH |
| 8 |  |
BLADE 18\\\"/46CM F.STEELDECK |
| 9 | BLADE LOCK ADAPTER-KIT | |
| 10 | BLADE LOCK ADAPTER | |
| 11 | BLADE BELL SUPPORT | |
| 12 | HEX.SCREW 3/8-24:1.50:GR8:SPEC | |
| 13 | SCR:TT:3/8-16:.750 HXINDWSH | |
| 14 | SPACER .383IDx.50OD x.18LG | |
| 15 | BRG:FLG:HEX:.506 IDX .590LG | |
| 16 | BEARING-HEX FLANGE | |
| 17 | FRONT AXLE | |
| 18 | ROD-LIFT INDEX | |
| 19 | PIN:COT:3/32 X .750 | |
| 20 | SCREW:TT:1/4-20:0.375:HXINDWSH | |
| 21 | CVR:CONT:LH:SELF STARTER | |
| 22 | CVR:CONT:RH:SELF STARTER | |
| 23 | SCR:HL:#8-18:1.250:PANPHI | |
| 24 | FOAM GRIP | |
| 25 | SPRING WASHER .401 x.870 x.060 | |
| 26 | WHL: COMPL: 7x2 LINK BLK BB | |
| 27 | SCREW-SHLD | |
| 28 | HUBCP:WHL:RADIAL SPOKE YELLOW | |
| 28A | HUBCAP:EURO:GREY | |
| 29 | GRASS CATCHER CPL. | |
| 30 | GRASS CATCH. FRAME | |
| 31 | RAHMEN FÜR KLAPPE -600- | |
| 32 | GRASS CATCHER TISSUE | |
| 33 | UPPER HANDLE | |
| 34 | CONTROL HANDLE, SELF START | |
| 35 | KIT-DETENT SPRING | |
| 36 | KNOB | |
| 37 | LOWER HANDLE | |
| 38 | BOLT:CRG:M8x1.25x50 DIN 603 | |
| 39 | WASH:FLAT:8.4 x 16 x 1.60 | |
| 40 | WASH:LOCK:B 8.4:DIN 6798 | |
| 41 | WING NUT | |
| 42 | HANDLE BRKT. L.H. YM 6018 SPS | |
| 42A | HANDLE BRKT. L.H. HB 46 RSLS | |
| 43 | HANDLE BRKT. R.H. YM 6018 SPS | |
| 43A | HANDLE BRKT. R.H. HB 46 RSLS | |
| 44 | HANDLE BRACKET RIGHT | |
| 45 | HANDLE BRACKET LEFT | |
| 46 | Screw | |
| 47 | WASH:FLAT:8.4 x 16 x 1.60 | |
| 48 | LOCK WASHER SCHNORR D 8 | |
| 49 | NUT:HEX:M8-1.25 DIN 934 | |
| 50 | SCREW | |
| 51 | INSULATING WASHER | |
| 52 | DEFLECTOR | |
| 53 | BOLT:EYE:M6 | |
| 54 | WASH: FLAT: 6.4x12x1.6 | |
| 55 | NUT:HEXLK:M6-1:NYLON:DIN 985 | |
| 57 | AXLE COMPL. | |
| 58 | COVER ASSY-CHAIN | |
| 59 | REAR AXLE | |
| 60 |  |
SPACER |
| 61 |  |
WASHER:BLVL:.265 x .750 x .060 |
| 62 |  |
HHCS:1/4-20:.620:GR5:STD |
| 63 |  |
TAP SCREW:1/4-14:.625:TRUSTRXI |
| 64 |  |
SEAL-HGT ADJ |
| 65 |  |
PLATE-HGT ADJ |
| 66 |  |
SPACER |
| 67 |  |
SPCR:SHLDR:.387IDx.50ODx1.50LG |
| 68 |  |
SPACER |
| 69 |  |
HEX. SCREW TT:1/4-20:1.500: |
| 70 |  |
GRIP: .5 ID x 3.45 |
| 71 |  |
PIN:SHLD:3/8-24 x 1.43 LG |
| 72 |  |
NUT:JAMLK:3/8-24:GR2 |
| 73 |  |
NUT:JAMLK:3/8-24 |
| 74 |  |
CHAIN-ENDLESS |
| 75 |  |
LVR:SPR:SGL:1.25 x 8.40 |
| 76 |  |
SPR.EXTN: .73 OD X 4.28 LG |
| 77 |  |
TIE:CBL:3/16:7.0 LG |
| 78 |  |
AXLE SPRING |
| 79 |  |
COMPR. SPRING:.360x.040 |
| 80 |  |
RING:RET:5103-25 |
| 81 |  |
FORK,LIFT |
| 82 |  |
TORSION SPRING |
| 84 |  |
TRANSMISSION |
| 85 |  |
HUBCP:WHL:RADIAL SPOKE YELLOW |
| 85A |  |
HUBCAP:EURO:GREY |
| 86 |  |
NUT:WELD:TOP-LOCK TAB:1/4-20 |
| 87 |  |
WHL:COMPL:8x2 LINK BLK PL |
| 87A |  |
WHL: COMPL: 8x2 LINK BLK BB |
| 88 |  |
SCREW:TT:1/4-20:0.375:HXINDWSH |
| 89 |  |
WASH:WAVE:.510x.750 x.017 |
| 90 |  |
BELT-V |
| 92 |  |
PLATE-PAWL |
| 94 |  |
RATCHET WHEEL |
| 95 |  |
SCR:SHLDR:.340X.285:1/4-20 |
| 96 |  |
SPRING WASHER .401 x.870 x.060 |
| 97 |  |
WASH:FLAT:.530x.930x.050 |
| 98R |  |
PAWL RH |
| 98L |  |
PAWL LH |
| 99 |  |
SPR:RTCHT:PLASTIC |
| 100 |  |
S.P.CABLE |
| 101 |  |
SCR:AB |
| 102 |  |
CABLE MOUNTING CAP |
| 103 |  |
COVER-HALF CONT-LWR |
| 104 |  |
LVR:SHFT |
| 105 |  |
UPPER DRIVE COVER |
| 106 |  |
HHCS:1/4-20:2.0:GR5:STD |
| 107 |  |
WASH:SDL:.320 x.93 x.060 |
| 108 |  |
NUT:HEXLK:1/4-20:GR8:NYLON |
| 109 |  |
CBL:CONT:58.25\\\" SS |
| 111 |  |
DISC SPRING |
| 112 |  |
THREADED PIN |
| 113 |  |
PULLEY |
| 114 |  |
SPACER |
