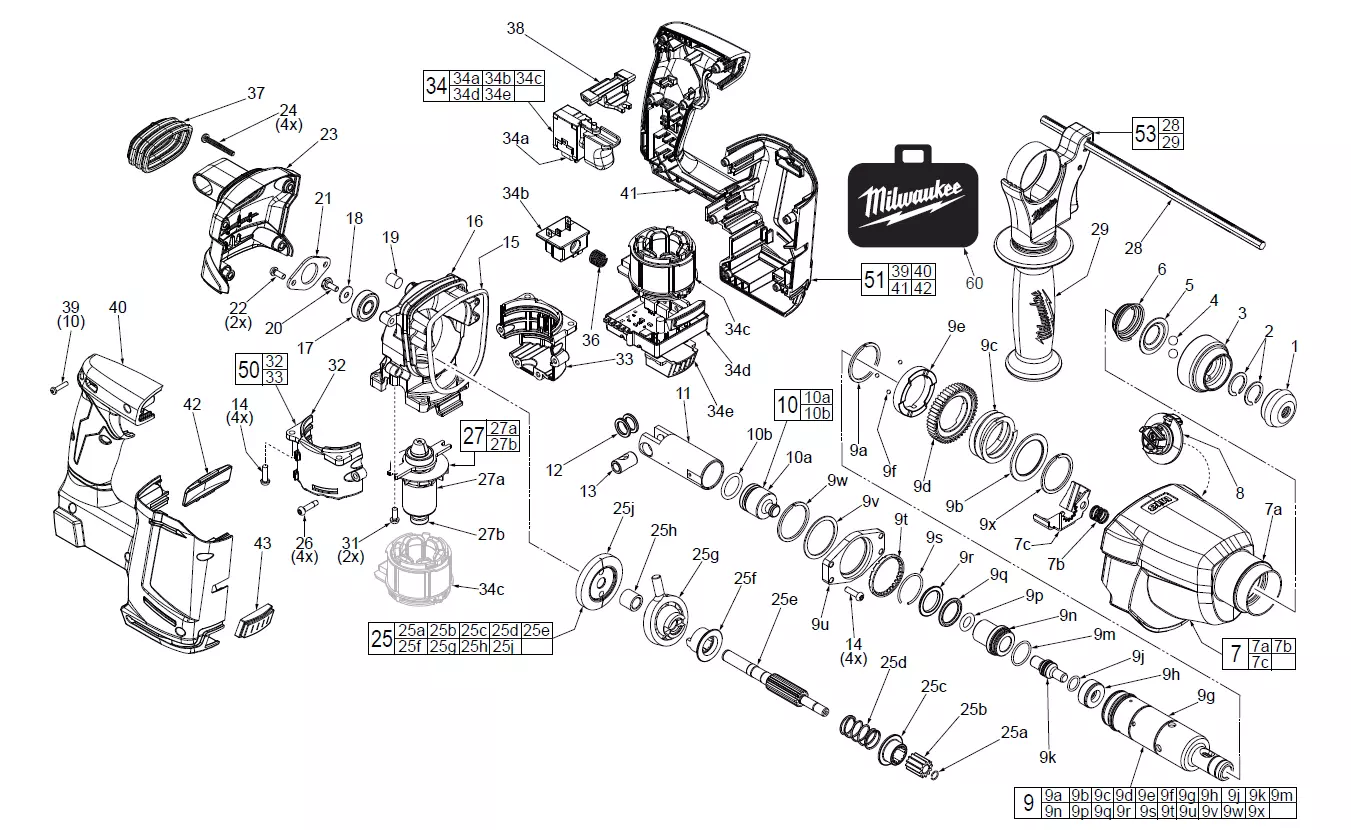

| П-п | Арт | Название |
|---|---|---|
| 1 | • Dust Cap | |
| 2 | • C-Ring | |
| 3 | • Chuck Sleeve Assembly | |
| 4 | 7mm Steel Ball | |
| 5 | Ball Plate | |
| 6 | Conical Spring | |
| 7 | Gearcase Assembly | |
| 7a | Gearcase with Bearings and Seal | |
| 7b | Spring | |
| 7c | Locking Plate | |
| 8 | Shift Lever with O-Rina | |
| 9 | Spindle Sleeve Assembly | |
| 9a | • C-Ring | |
| 9b | Washer | |
| 9c | Clutch Spring | |
| 9d | 2nd Stage Gear | |
| 9e | Clutch Rate | |
| 9f | Steel Ball | |
| 9g | Spindle | |
| 9h | Stop Washer | |
| 9j | • O-King | |
| 9k | Striker (Anvil) | |
| 9m | • O-Ring | |
| 9n | Sleeve (Ram Catcher) | |
| 9p | • O-Ring | |
| 9q | • O-Ring | |
| 9r | Washer | |
| 9s | • C-Rina | |
| 9t | Spindle Bearing | |
| 9u | Bearing Bar Mounting Bracket | |
| 9v | Washer | |
| 9w | • Spiral Retaining Ring | |
| 9x | • C-Ring | |
| 10 | Striker and O-Ring Assembly | |
| 10a | Striker (Ram) | |
| 10b | • O-Ring | |
| 11 | Piston | |
| 12 | • Washer | |
| 13 | Wrist Pin | |
| 14 | • M4 x 14mm Pan Hd. Taptite Screw | |
| 15 | • Gasket | |
| 16 | Crankcase | |
| 17 | Ball Bearing | |
| 18 | Washer | |
| 19 | • Felt Plug | |
| 20 | • 9mm Hex Screw | |
| 21 | Bearing Retainer | |
| 22 | • M4 x 10mm Screw | |
| 23 | Gear Housing Cover | |
| 24 | • M4 x 30mm Pan Hd. T-20 Screw | |
| 25 | Wobble Shaft Assembly | |
| 25a | • C-Ring | |
| 25b | Pinion Gear | |
| 25c | Coupling | |
| 25d | Spring | |
| 25e | Reduction Gear Shaft | |
| 25f | Coupling Sleeve | |
| 25g | WobblePlate | |
| 25h | Spacer | |
| 25j | Bevel Gear | |
| 26 | M4 x 18mm Screw | |
| 27 | Rotor Assembly | |
| 27a | Rotor | |
| 27b | Ball Bearing | |
| 28 | Depth Gauge | |
| 29 | Auxiliary Side Handle | |
| 31 | M4 x 8mm Screw | |
| 32 | Motor Housing Cover - Right | |
| 33 | Motor Housing Support - Left | |
| 34 | Electronics Assembly | |
| 34a | Switch | |
| 34b | Battery Terminal Connector Block | |
| 34c | Stator | |
| 34d | PC BA with LED | |
| 34e | Terminal Connector | |
| 36 | Terminal Spring | |
| 37 | Bellows | |
| 38 | Forward/Reverse Shuttle | |
| 39 | • M3 x 14mm Pan Hd. Plastite Screw | |
| 40 | Handle Cover - Right Halve | |
| 41 | Handle Support - Left Halve | |
| 42 | FUEL™ Housing Plate | |
| 43 | Terminal Cover | |
| 50 | Motor Housing Assembly | |
| 51 | Handle Assembly | |
| 53 | Side Handle Assembly | |
| 56 | Service Nameplate (Not Shown) | |
| 60 | Carrying Case for 2712-20 Tool Only and 2712-22 Kit | |
| 60 | Carrying Case for 2712-22DE Tool with Dust Extractor |
