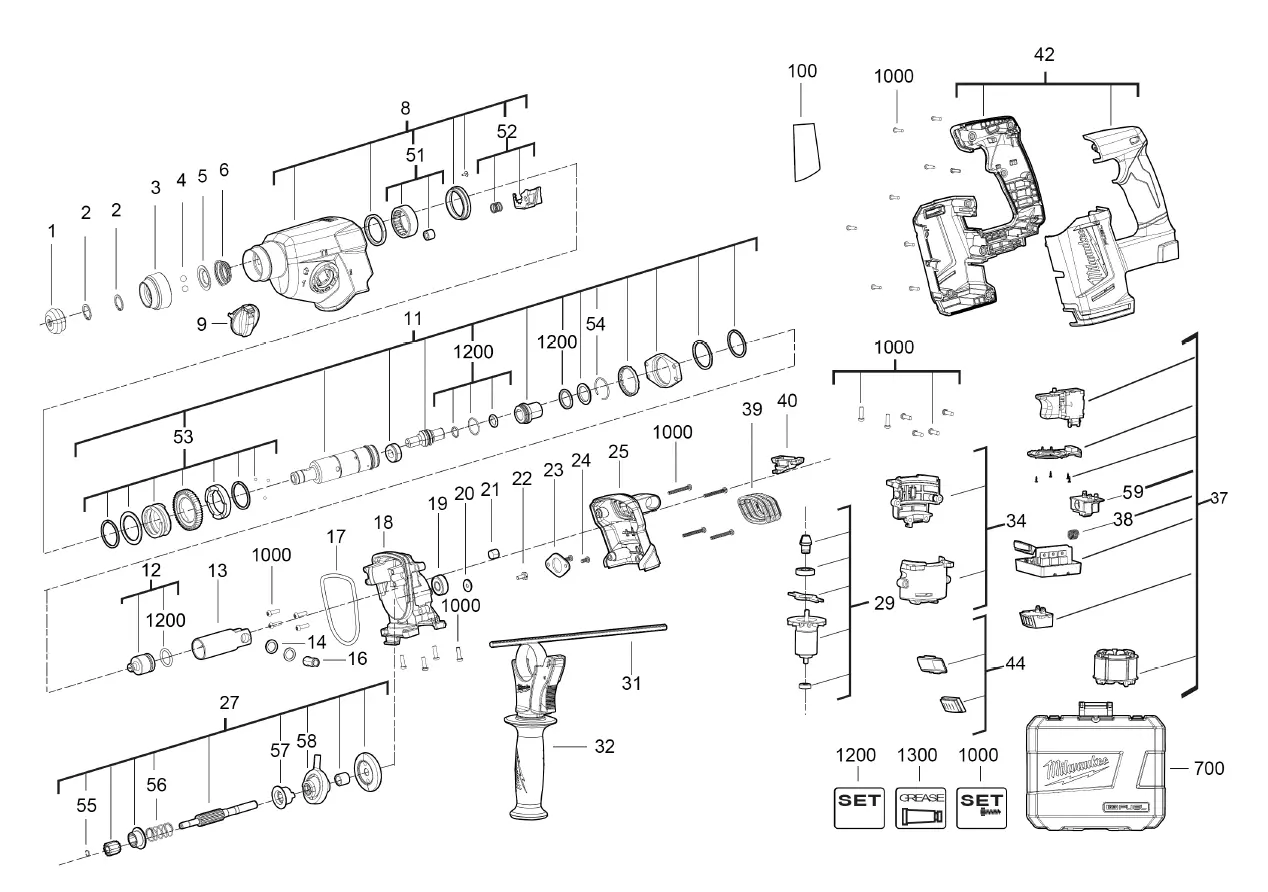

M18CH-0X (4000456555)
| П-п | Арт | Название |
|---|---|---|
| 1 | RUBBER CAP 4002395854936 | |
| 2 | RING 4002395179831 | |
| 3 | CHUCK SLEEVE 4002395143825 | |
| 4 | BALL 4002395143832 | |
| 5 | PLATE 4002395179824 | |
| 6 | SPRING 4002395143849 | |
| 8 | HOUSING 4002395250578 | |
| 9 | SWITCH BUTTON 4002395179800 | |
| 11 | SPINDLE KIT 4002395143856 | |
| 12 | SNAP DIE 4002395251209 | |
| 13 | PISTON 4002395251216 | |
| 14 | WASHER 4002395856268 | |
| 16 | CYLINDER PIN 4002395851966 | |
| 17 | O-RING 4002395251223 | |
| 18 | GEAR BOX ASSY 4002395143863 | |
| 19 | BALL BEARING 4002395870066 | |
| 20 | WASHER 4002395251247 | |
| 21 | FELT 4002395251254 | |
| 22 | SCREW 4002395851379 | |
| 23 | BEARING END PLATE 4002395251261 | |
| 24 | SCREW 4002395251278 | |
| 25 | HOUSING 4002395251285 | |
| 27 | SHAFT 4002395251292 | |
| 29 | ARMATURE 4002395251902 | |
| 31 | DEPTH GAUGE 4002395851218 | |
| 32 | AUXILIARY HANDLE 4002395850624 | |
| 34 | MOTOR HOUSING 4002395251926 | |
| 37 | SWITCH ASSEMBLY 4002395143870 | |
| 38 | PRESSURE SPRING 4002395814466 | |
| 39 | RUBBER SLEEVE 4002395849055 | |
| 40 | LEVER 4002395251940 | |
| 42 | HANDLE COMPL. 4002395251957 | |
| 44 | COVER 4002395251964 | |
| 51 | NEEDLE BEARING 4002395251988 | |
| 52 | INTERLOCK PLATE 4002395251995 | |
| 53 | GEAR KIT 4002395255504 | |
| 54 | HOLDING RING 4002395255511 | |
| 55 | WASHER 4002395854141 | |
| 56 | SPRING 4002395255528 | |
| 57 | WOBBLE PLATE 4002395255535 | |
| 58 | BALL BEARING 4002395856381 | |
| 59 | CONNECTOR 4002395143887 | |
| 100 | RATING PLATE 4002395143894 | |
| 700 | CARRYING CASE 4002395144501 | |
| 1000 | BOLT SET 4002395255559 | |
| 1200 | O-RING 4002395255566 | |
| 1300 | GEAR GREASE 4002395255627 |
