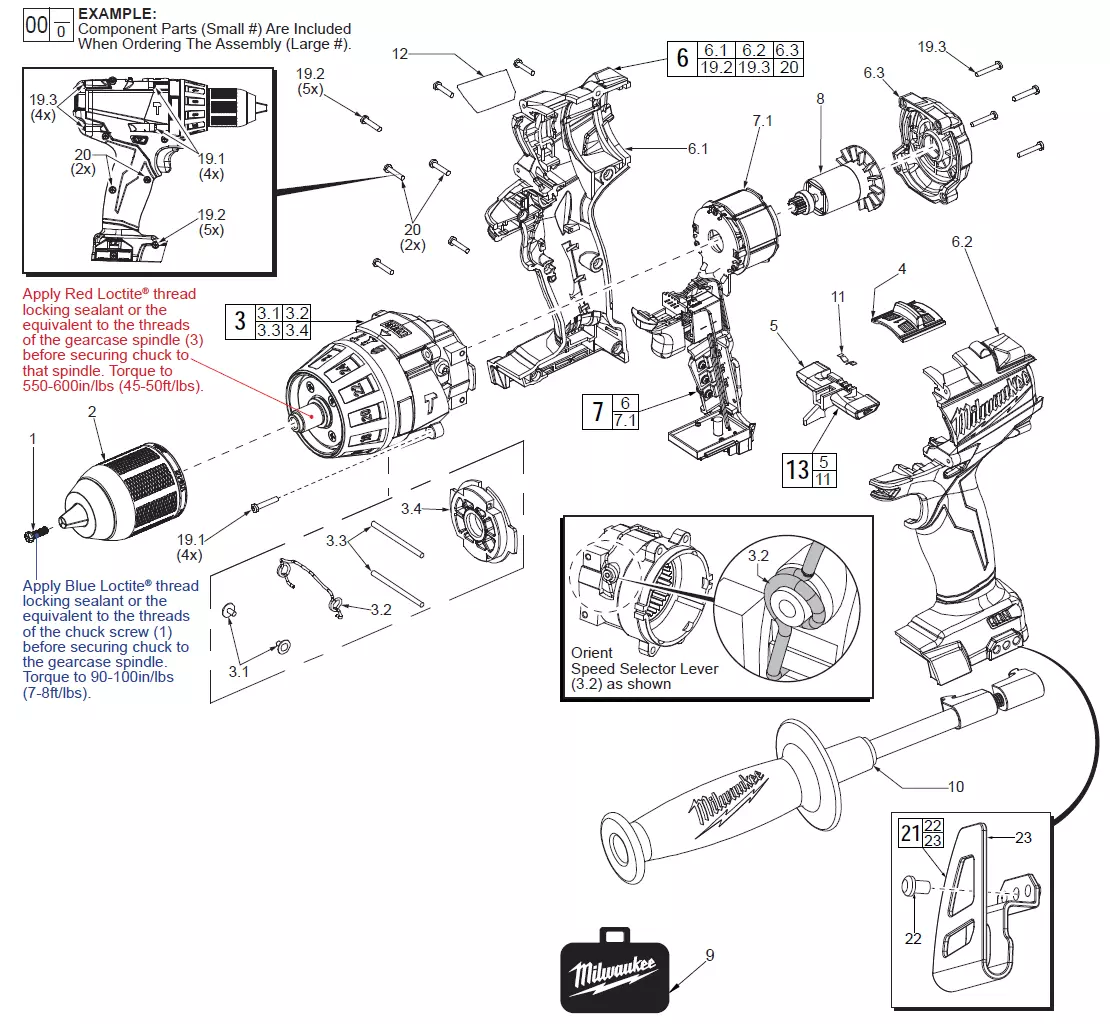

M18 FUEL 1/2" (2604-20) D56B
M18 FUEL 1/2" (2604-20) D56B
| П-п | Арт | Название |
|---|---|---|
| 1 | M6 x 1.0 LH Chuck Screw w/ locking patch (1) | |
| 2 | 1/2” Keyless Chuck (1) | |
| 3 | Gearcase Assembly (1) | |
| 3.1 | M2.3 x 4.5mm ST Screw (2) | |
| 3.2 | Speed Selector Lever (1) | |
| 3.3 | 2.3 x 34 Pin (2) | |
| 3.4 | Motor Mounting Plate (1) | |
| 4 | Speed Selector Button (1) | |
| 5 | Forward / Reverse Shuttle (1) | |
| 6 | Housing Kit (1) | |
| 6.1 | Right Housing Halve (1) | |
| 6.2 | Left Housing Halve (1) | |
| 6.3 | Rear Cap (1) | |
| 7 | Housing / Electronics Kit (1) | |
| 7.1 | Motor / Switch / PCBA Assembly (1) | |
| 8 | Service Armature (1) | |
| 9 | Blow Molded Carrying Case (1) | |
| 10 | Auxiliary Side Handle Assembly (1) | |
| 11 | Shuttle Spring (1) | |
| 12 | Service Nameplate (1) | |
| 13 |  |
Forward / Reverse Shuttle Kit (1) |
| 19.1 |  |
M3 x 16mm T-10 ST Screw (Gearcase) (4) |
| 19.2 |  |
M3 x 16mm T-10 ST Screw (Handle Halves) (5) |
| 19.3 |  |
M3 x 16mm T-10 ST Screw (Rear Cap) (4) |
| 20 |  |
M3 x 14mm T-10 ST Screw (Handle Halves)(2) |
| 21 |  |
Belt Clip Assembly (1) |
| 22 |  |
6-32 x 5/16” Pan Hd. T-15 Machine Screw (1) |
| 23 |  |
Belt Clip (1) |
