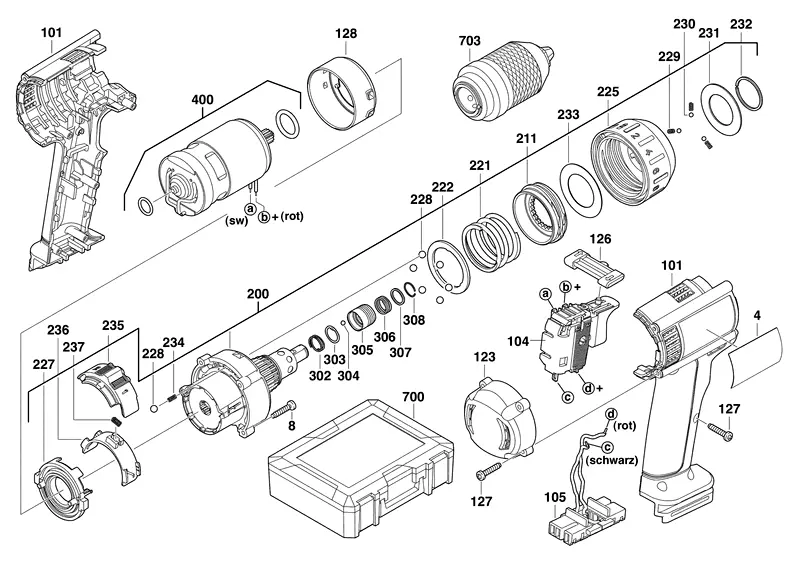

PDD12X (4000401461)
| П-п | Арт | Название |
|---|---|---|
| 4 | RATING PLATE | |
| 8 | SCREW N874101 C-K3X16 | |
| 71 | INSERT | |
| 101 | HOUSING | |
| 104 | SWITCH BOARD | |
| 105 | WIRE | |
| 123 | HOUSING CAP | |
| 126 | SLIDING SWITCH | |
| 128 | ADAPTER | |
| 200 | GEAR BOX | |
| 211 | SET COLLAR | |
| 221 | PRESSURE SPRING | |
| 222 | CLUTCH DISC | |
| 225 | JUMPER RING | |
| 227 | BEARING END PLATE | |
| 228 | BALL | |
| 229 | PRESSURE SPRING | |
| 230 | BALL | |
| 231 | WASHER | |
| 232 | SPRING RING N874268 SW 26 | |
| 233 | WASHER | |
| 234 | PRESSURE SPRING | |
| 235 | SLIDING SWITCH | |
| 236 | SLIDING SWITCH | |
| 237 | PRESSURE SPRING | |
| 302 | PRESSURE SPRING | |
| 303 | PLATE | |
| 304 | BALL | |
| 305 | SLEEVE | |
| 306 | PRESSURE SPRING | |
| 307 | DISC | |
| 308 | SPRING RING | |
| 400 | MOTOR | |
| 700 | CARRYING CASE | |
| 700 | CARRYING CASE WITH FOAM INSERT MET | |
| 703 | Chuck ChKLF1,5-13 Fxtc P1M |
