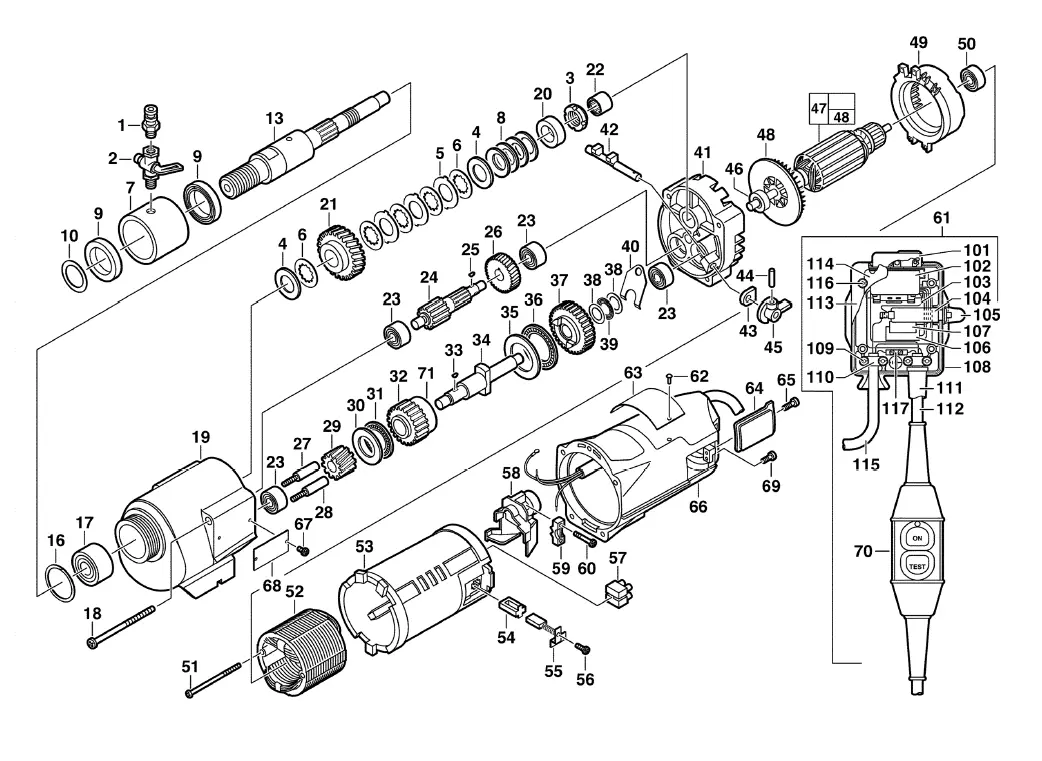

DCM 2-250C (4000384546)
DCM 2-250C (4000384546)
| П-п | Арт | Название |
|---|---|---|
| 0001 | FITTING 4058546073282 | |
| 0002 | VALVE 4058546074722 | |
| 0003 | NUT 4058546068547 | |
| 0004 | WASHER 4058546074814 | |
| 0005 | DISC 4058546073312 | |
| 0006 | DISC 4058546073305 | |
| 0007 | THREADED SLEEVE 4058546073619 | |
| 0008 | PRESSURE SPRING 4058546072780 | |
| 0009 | SEAL RING 4058546074326 | |
| 0010 | WASHER 4002395906673 | |
| 0013 | SPINDLE 4058546072636 | |
| 0016 | RING 4058546072407 | |
| 0017 | BALL BEARING 4058546068172 | |
| 0018 | SCREW 4002395894390 | |
| 0019 | BODY 4058546070922 | |
| 0020 | SPACER 4058546074678 | |
| 0021 | SPINDLE GEAR 4058546072025 | |
| 0022 | NEEDLE BEARING 4002395841455 | |
| 0023 | BALL BEARING 4058546068059 | |
| 0024 | SHAFT 4058546072506 | |
| 0025 | KEY 4058546068486 | |
| 0026 | GEAR 4058546071806 | |
| 0027 | PRESSURE SPRING 4002395841400 | |
| 0028 | PLUNGER 4058546074074 | |
| 0029 | GEAR BOX 4058546071912 | |
| 0030 | WASHER 4058546074746 | |
| 0031 | THRUST BEARING 4058546068325 | |
| 0032 | GEAR 4058546071745 | |
| 0033 | KEY 4058546068493 | |
| 0034 | CLUTCH SHAFT 4058546072438 | |
| 0035 | WASHER 4058546074753 | |
| 0036 | THRUST BEARING 4058546068332 | |
| 0037 | GEAR BOX 4058546071738 | |
| 0038 | WASHER 4058546074739 | |
| 0039 | THRUST BEARING 4002395841431 | |
| 0040 | YOKE 4058546074982 | |
| 0041 | BEARING END PLATE 4058546069438 | |
| 0042 | SLIDING SWITCH 4058546071196 | |
| 0043 | GASKET 4058546073428 | |
| 0045 | TRIGGER 4058546070878 | |
| 0046 | BALL BEARING 4002395890767 | |
| 0047 | ARMATURE ASSEMBLY 4058546069711 | |
| 0048 |  |
FAN 4058546070342 |
| 0049 |  |
AIR DEFLECTOR RING 4058546072940 |
| 0050 |  |
BALL BEARING 4002395841462 |
| 0051 |  |
SCREW 4058546069131 |
| 0052 |  |
ELECTRIC FIELD 4058546069766 |
| 0053 |  |
ISOLATION MODULE 4058546070397 |
| 0054 |  |
BRUSH HOLDER 4002395841417 |
| 0055 |  |
CARBON BRUSH 4002395841424 |
| 0056 |  |
SCREW 4058546069070 |
| 0057 |  |
TERMINAL 4058546070144 |
| 0058 |  |
CLAMP 4058546070113 |
| 0059 |  |
CLAMPING PIECE 4058546071424 |
| 0060 |  |
SCREW 4058546069018 |
| 0061 |  |
CONTROL DEVICE 4058546070410 |
| 0062 |  |
RIVET 4058546068639 |
| 0063 |  |
NAME PLATE 4058546069407 |
| 0064 |  |
BRUSH COVER 4058546070021 |
| 0065 |  |
SCREW 4058546068851 |
| 0066 |  |
HOUSING 4058546071165 |
| 0067 |  |
SCREW 4058546068837 |
| 0068 |  |
INSTRUCTION PLATE 4058546069384 |
| 0069 |  |
SCREW 4058546069261 |
| 0070 |  |
CABLE HARNESS 4058546070090 |
| 0071 |  |
SPACER 4058546074623 |
| 101 |  |
SWITCH COVER 4058546070298 |
| 102 |  |
SWITCH 4058546070526 |
| 103 |  |
CABLE SET 4058546070861 |
| 104 |  |
CABLE HARNESS 4058546070106 |
| 105 |  |
SWITCH COVER 4058546070304 |
| 106 |  |
CAPACITOR 4058546070052 |
| 107 |  |
OVERVOLT. PROT.DEV. 4002395847747 |
| 108 |  |
SWITCH COVER 4058546069780 |
| 109 |  |
SCREW 8-16X7/8 PAN SL PLS 4058546069001 |
| 110 |  |
CLAMPING PIECE 4058546071400 |
| 111 |  |
CABLE CLAMP 4058546074098 |
| 112 |  |
CABLE 4058546070267 |
| 113 |  |
COVER 4058546070281 |
| 115 |  |
CONNECTION CABLE |
| 116 |  |
SCREW 4058546069018 |
| 117 |  |
CLAMP 4058546070151 |
| 120 |  |
ALLEN KEY |
