DD2-160XE (4000368691)

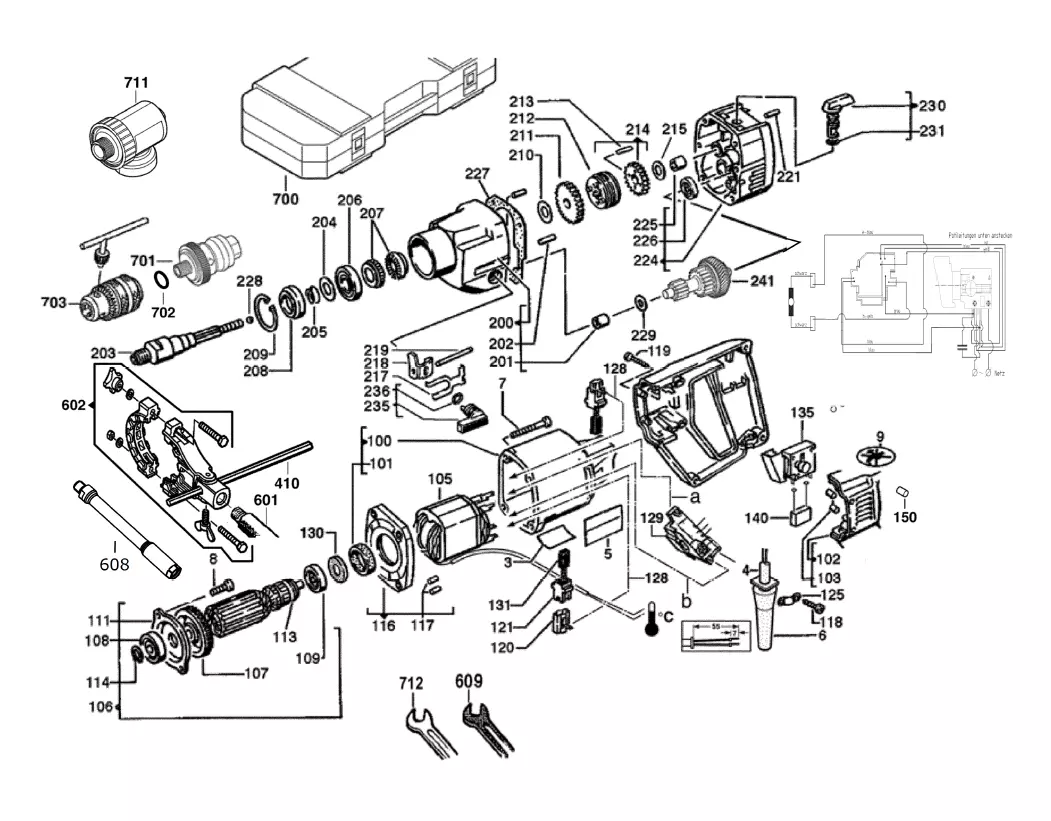

DD2-160XE (4000368691)
| П-п | Арт | Название |
|---|---|---|
| 3 |  |
RATING PLATE 4002395743278 |
| 4 |  |
CONNECTION CABLE 4002395591657 |
| 5 |  |
NAME PLATE 4002395689729 |
| 6 |  |
CABLE ENTRY SLEEVE 4002395653607 |
| 7 |  |
SCREW D 912 M 4X70 8G 4002395694259 |
| 8 |  |
SCREW 4002395694105 |
| 9 |  |
LABEL 4002395603459 |
| 100 |  |
HOUSING 4002395653676 |
| 101 |  |
RUBBER SLEEVE 4002395591428 |
| 102 |  |
HANDLE 4002395653690 |
| 103 | HOLDING-DOWN DEVICE 4002395856992 | |
| 105 | ELECTRIC FIELD 4002395883912 | |
| 106 | ARMATURE 4058546299569 | |
| 107 | FAN 4002395587810 | |
| 108 | GROOVED BALL BEAR. 4002395670642 | |
| 109 | BALL BEARING 4002395706358 | |
| 111 | BEARING COVER 4002395587490 | |
| 113 | INSULATING DISC 4002395588138 | |
| 114 | RING 4002395693610 | |
| 116 | AIR DEFLECTOR RING 4002395620210 | |
| 117 | RUBBER STOP 4002395856992 | |
| 118 | SCREW 4002395760039 | |
| 119 | SCREW 4002395694945 | |
| 120 | BRUSH HOLDER 4002395600212 | |
| 121 | BRUSH HOLDER INSUL 4002395600199 | |
| 125 | CABLE COLLAR 4002395586547 | |
| 128 | CONNECTION CABLE 4002395697496 | |
| 129 | PRINTED CIRC. BOARD 4058546036430 | |
| 130 | FELT WASHER 4002395590957 | |
| 131 | CARBON BRUSH SET 4002395740741 | |
| 135 | SWITCH 4002395721863 | |
| 140 | CAPACITOR 4002395723027 | |
| 150 | HOLDING-DOWN DEVICE 4002395847617 | |
| 200 | GEAR BOX 4002395799442 | |
| 201 | NEEDLE BEARING 4002395583874 | |
| 202 | PIN 4002395694402 | |
| 203 | DRILL SPINDLE 4002395593644 | |
| 204 | DISC 4002395696048 | |
| 205 | PRESSURE SPRING 4002395587421 | |
| 206 | BALL BEARING 4002395706303 | |
| 207 | PERCUSSION SLEEVE 4002395731145 | |
| 208 | SEAL RING 4002395587537 | |
| 209 | LOCKING RING 4002395706297 | |
| 210 | DISC 4002395707119 | |
| 211 | DRILL SPINDLE WHEEL 4002395742011 | |
| 212 | SHIFT RING COMPL. 4002395593064 | |
| 213 | PIN 4002395695867 | |
| 214 | DRILL SPINDLE WHEEL 4002395673858 | |
| 215 | DISC N874237 8,1X16X0,5 4002395706334 | |
| 217 | RETAINING SPRING 4002395593057 | |
| 218 | SWITCH LEVER 4002395594122 | |
| 219 | PIN 4002395695850 | |
| 221 | PIN 4002395695744 | |
| 224 | BEARING END PLATE 4002395799497 | |
| 225 | SLEEVE N874989 HKO 0810 4002395706464 | |
| 226 | BALL BEARING 4002395790906 | |
| 227 | GASKET 4002395593729 | |
| 228 | BALL 4002395706037 | |
| 229 | DISC N874237 8,3X16,5X1 4002395706563 | |
| 230 | SWITCH LEVER 4002395602223 | |
| 231 | O-RING N874701 8X1 4002395707058 | |
| 235 | SWITCH LEVER 4002395594597 | |
| 236 | O-RING N874701 14X1 4002395893485 | |
| 241 | REDUCTION GEAR 4002395742028 | |
| 410 | DEPTH GAUGE 4002395719402 | |
| 601 | HANDLE 4002395736027 | |
| 602 | CLAMPING RING 4002395784851 | |
| 608 | Not available for this version | |
| 609 | KEY 4002395584765 | |
| 700 | CARRYING CASE 4002395793402 | |
| 702 | O-RING 4002395706969 | |
| 701 | FIXTEC ADAPTER FIXTEC M18/16 P1 MET 4002395357819 | |
| 703 | THREE JAW CHUCK Ch 3-16 M18 P1M 4002395310784 | |
| 711 | FIXTEC CLR M18X2.5 / 1 1/4 P1M 4002395368242 | |
| 712 | OPEN-ENDED SPANNER SW17/24 P1 A/M 4002395307722 |
