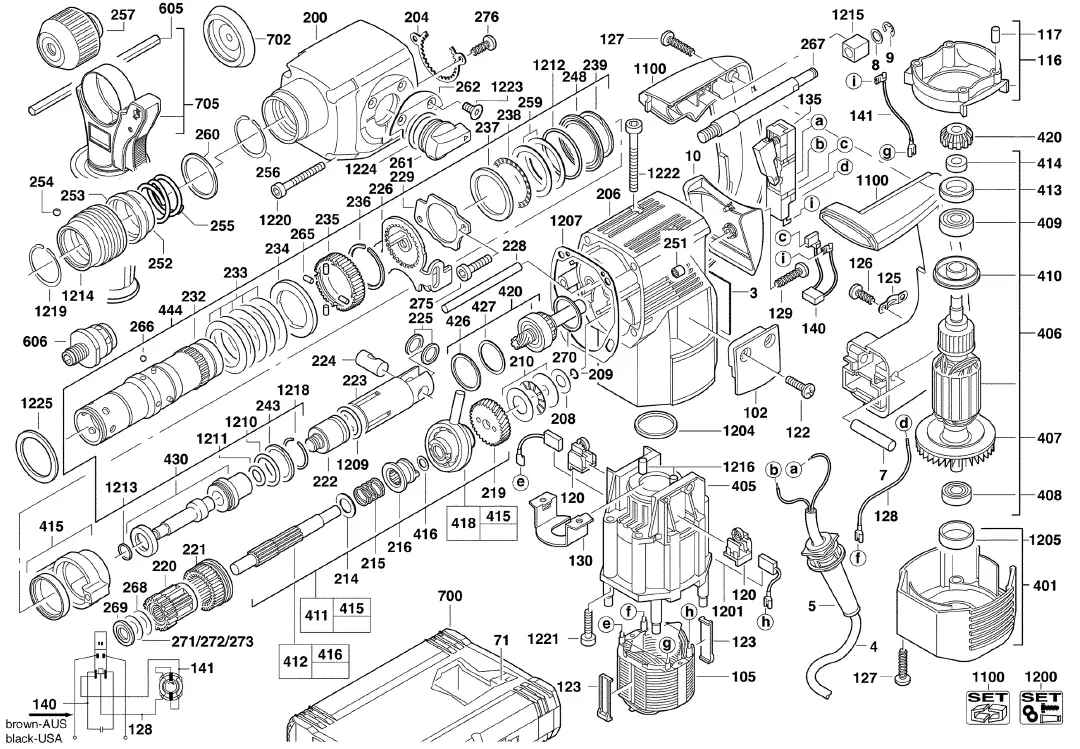

| П-п | Арт | Название |
|---|---|---|
| 3 | RATING PLATE | |
| 4 | CONNECTION CABLE | |
| 5 | PROTECTING COVER | |
| 7 | GROOVED DOWEL PIN | |
| 8 | WASHER | |
| 9 | WASHER | |
| 10 | GEAR BOX COVER | |
| 71 | CARRYING CASE | |
| 102 | COVER | |
| 105 | ELECTRIC FIELD | |
| 116 | AIR DEFLECTOR RING | |
| 117 | HOLDING-DOWN DEVICE | |
| 120 | BRUSH HOLDER | |
| 122 | SCREW | |
| 123 | CENTERING LEDGE | |
| 125 | CABLE COLLAR | |
| 126 | SCREW | |
| 127 | SCREW | |
| 128 | WIRE | |
| 129 | SCREW | |
| 130 | BEARING COVER | |
| 135 | SWITCH BOARD | |
| 140 | CAPACITOR | |
| 141 | WIRE | |
| 200 | GEAR BOX | |
| 204 | WASHER | |
| 206 | GEAR BOX | |
| 208 | WASHER | |
| 209 | O-RING N874701 5X1 | |
| 210 | THRUST BEARING | |
| 214 | DISC | |
| 215 | PRESSURE SPRING | |
| 216 | COUPLING SLEEVE | |
| 219 | REDUCTION GEAR | |
| 220 | PLANET GEAR | |
| 221 | INTERN.GEARED WHEEL | |
| 222 | PERCUSSION BODY | |
| 223 | CYLINDER | |
| 224 | CYLINDRICAL BOLT | |
| 225 | WASHER | |
| 226 | SLIDER | |
| 228 | PIN | |
| 229 | LATCH PLATE | |
| 232 | SPINDLE SLEEVE | |
| 233 | CUP SPRING | |
| 234 | CLUTCH DISC | |
| 235 | SPINDLE GEAR | |
| 236 | SPRING RING | |
| 237 | WASHER | |
| 238 | THRUST BEARING | |
| 239 |  |
LOCKING WASHER |
| 243 |  |
THRUST COLLAR |
| 248 |  |
WASHER |
| 251 |  |
NEEDLE BEARING |
| 252 |  |
SLEEVE |
| 253 |  |
RING STOP |
| 254 |  |
BALL |
| 255 |  |
PRESSURE SPRING |
| 256 |  |
SPRING RING |
| 257 |  |
ADAPTER |
| 259 |  |
WASHER |
| 260 |  |
WASHER |
| 261 |  |
SWITCH HANDLE |
| 262 |  |
LATCH PLATE |
| 265 |  |
CYLINDER PULLEY |
| 266 |  |
BALL |
| 267 |  |
BOLT |
| 268 |  |
DISC N874237 |
| 269 |  |
SPACER |
| 270 |  |
SUPPORTING PLATE |
| 271 |  |
DISC N874237 |
| 272 |  |
DISC N874237 |
| 275 |  |
SCREW |
| 276 |  |
SCREW |
| 401 |  |
MOTOR COVER |
| 405 |  |
MOTOR HOUSING |
| 406 |  |
ARMATURE |
| 407 |  |
FAN |
| 408 |  |
GROOVED BALL BEAR. |
| 409 |  |
BALL BEARING |
| 410 |  |
INSULATING DISC |
| 411 |  |
REPAIR KIT |
| 412 |  |
REDUCT. GEAR SHAFT |
| 413 |  |
SEAL RING |
| 414 |  |
SPACER |
| 415 |  |
BUSHING |
| 416 |  |
DISC N874237 A 10,1 X18X1 |
| 418 |  |
REPAIR KIT |
| 420 |  |
PINION SHAFT |
| 426 |  |
LOCKING RING |
| 427 |  |
DISC N874237 A16,1 X26X1 |
| 430 |  |
REPAIR KIT |
| 444 |  |
SPINDLE SLEEVE |
| 605 |  |
DEPTH GAUGE |
| 606 |  |
CHUCK ADAPTER |
| 1100 |  |
HANDLE COMPL. |
| 1200 |  |
MAINTENANCE SET |
| 1201 |  |
CARBON BRUSH SET |
| 1204 |  |
O-RING |
| 1205 |  |
RUBBER SLEEVE |
| 1207 |  |
GASKET |
| 1209 | SEAL RING | |
| 1210 | SEAL RING | |
| 1211 | O-RING | |
| 1212 | O-RING | |
| 1213 | SEAL RING | |
| 1214 | SLEEVE | |
| 1215 | DAMPING ELEMENT | |
| 1216 | HOLDING-DOWN DEVICE | |
| 1218 | RING | |
| 1220 | SCREW | |
| 1221 | SCREW | |
| 1222 | SCREW | |
| 1223 | SCREW | |
| 1224 | O-RING | |
| 1225 | FELT WASHER | |
| 700 | CARRYING CASE WITH FOAM INSERT MET | |
| 702 | DUST CATCHER Dust coll ring P1 AM | |
| 705 | HANDLE PHE P1 A/M |
