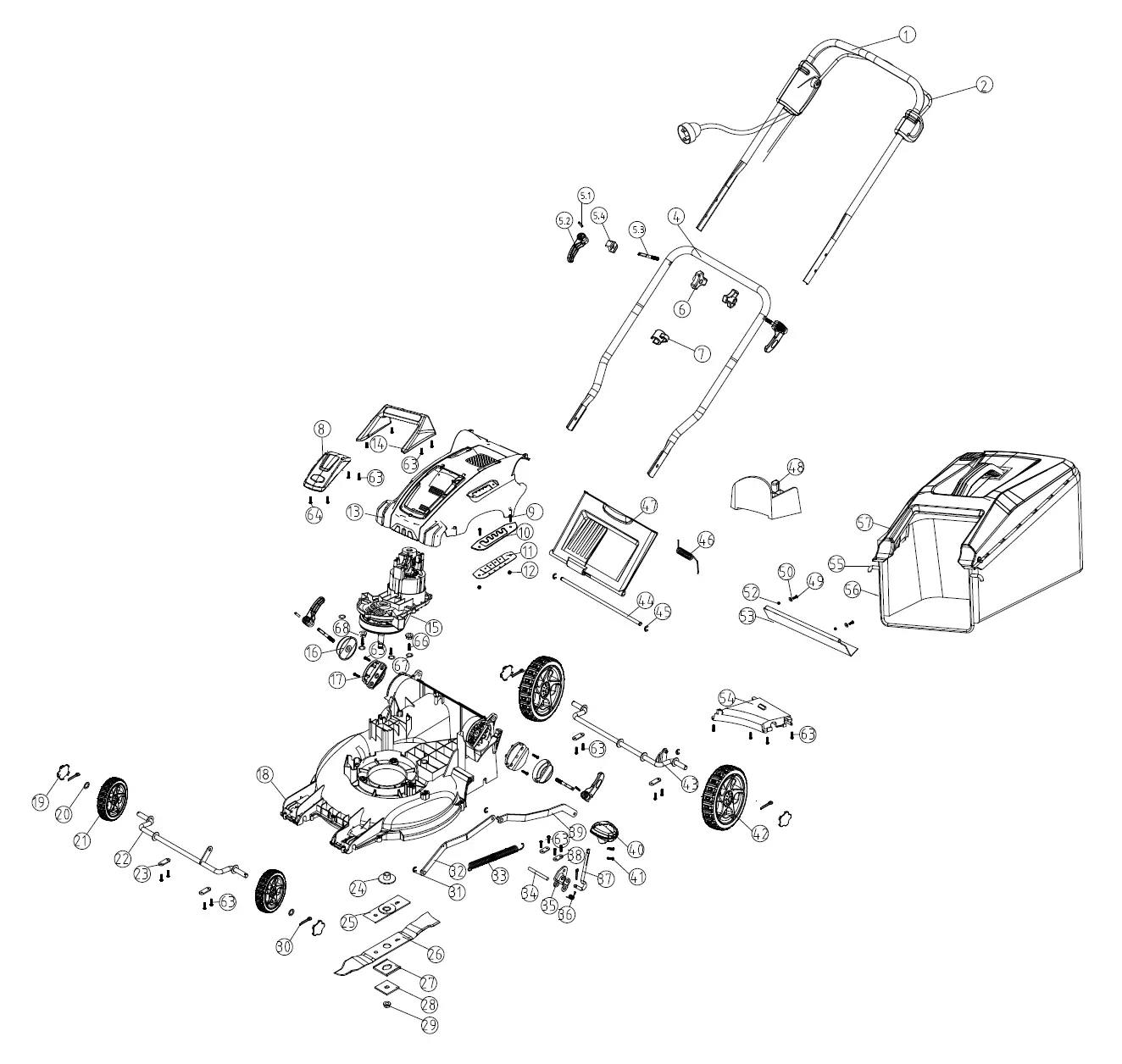

| П-п | Арт | Название |
|---|---|---|
| 1 | Upper handle assy | |
| 2 | bail switch | |
| 4 | Lower handle | |
| 5 | Cam lock assy | |
| 6 | M8 Screw cap | |
| 7 | Cord hook | |
| 8 | Motor cover | |
| 9 | Screw | |
| 10 | Plate | |
| 11 | Mat | |
| 12 | Nut | |
| 13 | Top cover | |
| 14 | Lift handle | |
| 15 | Motor assy | |
| 16 | Lower handle lock pad | |
| 17 | Lower handel pad | |
| 18 | Deck | |
| 19 | Wheel cover | |
| 20 | Gasket | |
| 21 | Front wheel | |
| 22 | Front axle | |
| 23 | Plate | |
| 24 | Motor axle sleeve | |
| 25 | Blade fixture | |
| 26 | Mower blade | |
| 27 | Blade insulator | |
| 28 | Spacer | |
| 29 | Nut | |
| 30 | Cotter pin | |
| 31 | Circlip | |
| 32 | Front link pole | |
| 33 | Spring | |
| 34 | Axle | |
| 35 | Bracket | |
| 36 | Torsion | |
| 37 | Pole | |
| 38 | Plate | |
| 39 | Rear link pole | |
| 40 | Adjustment handle | |
| 41 | Screw | |
| 42 | Rear wheel | |
| 43 | Rear axle | |
| 44 | Rear cover rod | |
| 45 | Opening ring | |
| 46 | Rear cover torsion | |
| 47 | Rear cover | |
| 48 | Rear block | |
| 49 | Screw | |
| 50 | Flat pad | |
| 52 | Self-locking nut | |
| 53 | Rear shield | |
| 54 | Rear baffle | |
| 55 | Grass bag frame | |
| 56 | Grass bag | |
| 57 | Grass bag box | |
| 63 | Screw | |
| 64 | Screw | |
| 66 | Screw | |
| 67 | Flat pad | |
| 68 | Self-locking nut | |
| _ | Ремень 6PJ381 |
