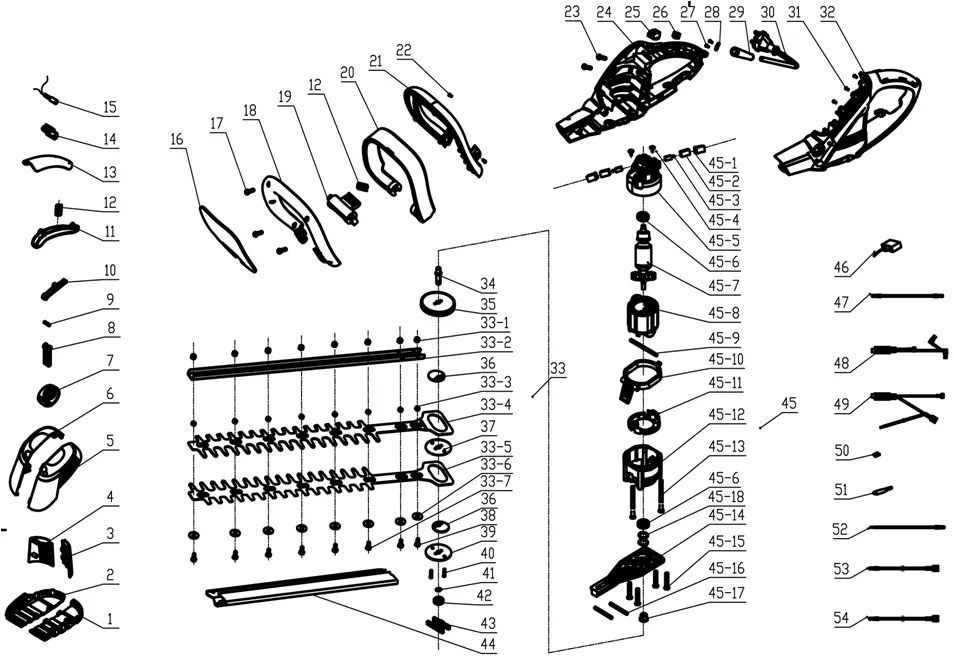

| П-п | Арт | Название |
|---|---|---|
| 1 | Left base cover | |
| 2 | Right base cover | |
| 3 | Left side cover | |
| 4 | Right side cover | |
| 5 | Left top cover | |
| 6 | Right top cover | |
| 7 | Top cover | |
| 8 | Middle connector lever | |
| 9 | Cricle pin | |
| 10 | Switch connector lever | |
| 11 | Rear trigger | |
| 12 | Spring | |
| 13 | Cover | |
| 14 | Lamp shade | |
| 15 | Power lamp | |
| 16 | Крышка тормоза | |
| 17 | Self tapping screw 3*12 | |
| 18 | Below handle | |
| 19 | Рычаг включения | |
| 20 | Front trigger | |
| 21 | Top handle | |
| 22 | Self tapping screw 4*12 | |
| 23 | Self tapping screw 4*16 | |
| 24 | Right housing | |
| 25 | Выключатель | |
| 26 | Connector base | |
| 27 | Self tapping screw 4*10 | |
| 28 | Cable clamp | |
| 29 | Провод питания | |
| 30 | ||
| 31 | Flange screw 3*8 | |
| 32 | Left housing | |
| 33 | Ножи в сборе | |
| 33-1 | Self locking nut | |
| 33-2 | Support pole | |
| 33-3 | Blade washer | |
| 33-4 | Up blade | |
| 33-5 | Below blade | |
| 33-6 |  |
Washer |
| 33-7 |  |
Hex screw 5*14 |
| 34 |  |
Output shaft |
| 35 |  |
Big gear |
| 36 |  |
Eccentric wheel |
| 37 |  |
Washer |
| 38 |  |
Screw 5*20 |
| 39 |  |
Washer |
| 40 |  |
Pin |
| 41 |  |
Shaft jump ring |
| 42 |  |
698 Bearing |
| 43 |  |
Bearing fixed plate |
| 44 |  |
Blade cover |
| 45 |  |
Двигатель в сборе |
| 45-1 |  |
Brush holder |
| 45-2 |  |
Bush |
| 45-3 |  |
Carbon brush |
| 45-4 |  |
Flange screw 3*12 |
| 45-5 |  |
Brush support |
| 45-6 |  |
608Z Bearing |
| 45-7 |  |
Rotor |
| 45-8 |  |
Stator |
| 45-9 |  |
O Lever pin |
| 45-10 |  |
O Lever |
| 45-11 |  |
Wind screen |
| 45-12 |  |
Base support |
| 45-13 |  |
Self tapping screw 4*65 |
| 45-14 |  |
Aluminium support |
| 45-15 |  |
Self tapping screw 4*16 |
| 45-16 |  |
Blade fixed pin |
| 45-17 |  |
Oil bearing |
| 45-18 |  |
Washer |
| 46 |  |
Capacitance |
| 47 |  |
Connecting wire 3 |
| 48 |  |
Connecting wire 3 |
| 49 |  |
Connecting wire 4 |
| 50 |  |
Terminal |
| 51 |  |
Terminal |
| 52 |  |
Connecting wire 2 |
| 53 |  |
Connecting wire 6 |
| 54 |  |
Connecting wire 1 |
