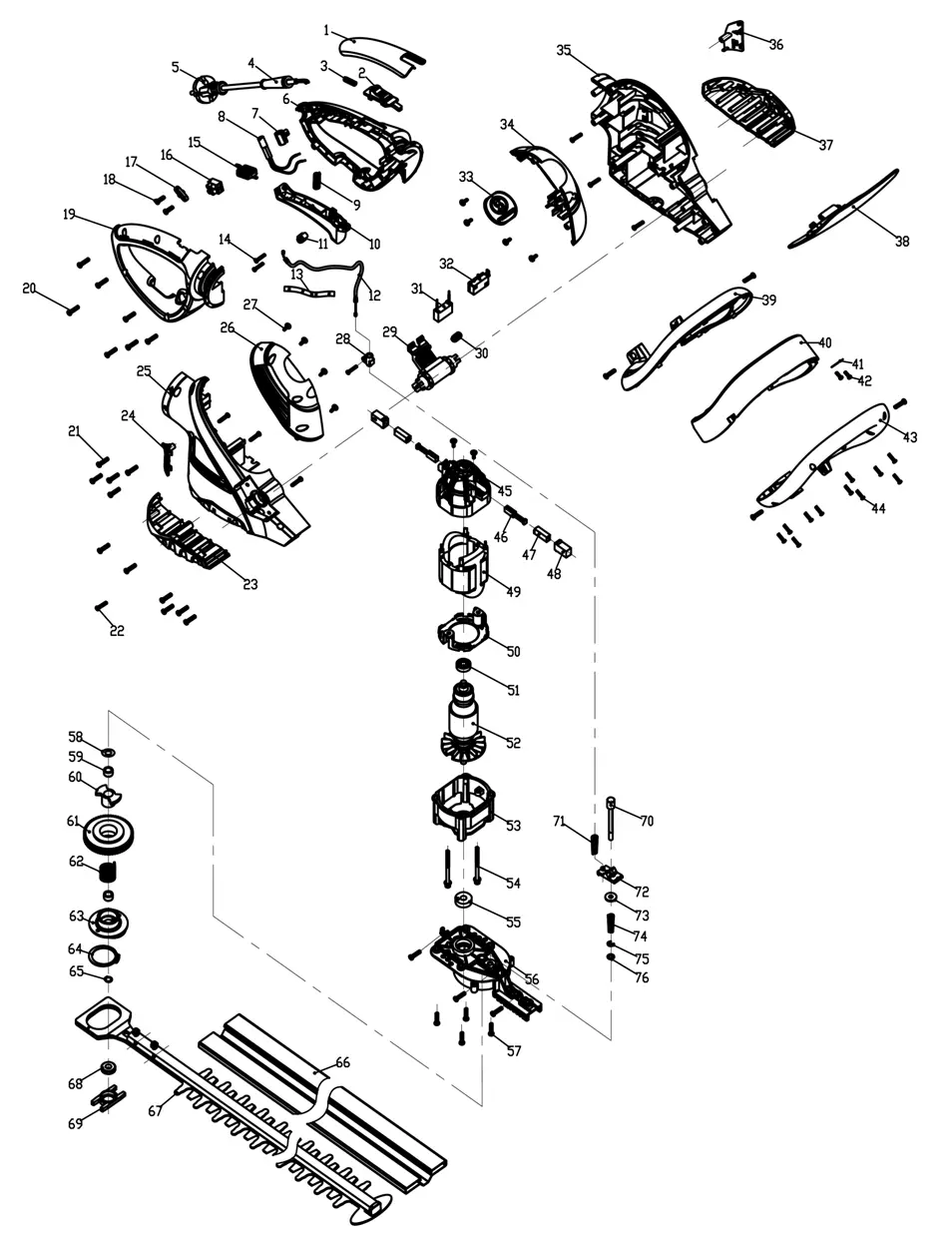

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Handle cover |
| 2 |  |
Push button |
| 3 |  |
Push button spring |
| 4 |  |
Cable sleeve |
| 5 |  |
Cable |
| 6 |  |
Left handle |
| 7 |  |
Lamp cover |
| 8 |  |
Power lamp |
| 9 |  |
Switch trigger spring |
| 10 |  |
Switch trigger |
| 11 |  |
Small clamp |
| 12 |  |
Steel wire |
| 13 |  |
Tube |
| 14 |  |
Self tapping screw 3*15 |
| 15 |  |
Inductance |
| 16 |  |
Connector base |
| 17 |  |
Cable clamp |
| 18 |  |
Self tapping screw 4*12 |
| 19 |  |
Right handle |
| 20 |  |
Self tapping screw 4*14 |
| 21 |  |
Self tapping screw 4*16 |
| 22 |  |
Self tapping screw 3.5*14 |
| 23 |  |
Right below base |
| 24 |  |
Right dalle |
| 25 |  |
Right housing |
| 26 |  |
Right dalle cover |
| 27 |  |
Self tapping screw 3*10 |
| 28 |  |
Clamp |
| 29 |  |
Turn support |
| 30 |  |
Spring |
| 31 |  |
Capacitance |
| 32 |  |
Micro switch |
| 33 |  |
Identify cover |
| 34 |  |
Left dalle cover |
| 35 |  |
Right housing |
| 36 |  |
Left dalle plate |
| 37 |  |
Left below base |
| 38 |  |
Shield cover |
| 39 |  |
Up handle support |
| 40 |  |
Front handle |
| 41 |  |
Fixed plate |
| 42 |  |
Self tapping screw 3*8 |
| 43 |  |
Below handle support |
| 44 |  |
Self tapping screw 3*12 |
| 45 |  |
Brush support |
| 46 |  |
Carbon brush, Copper brush,Brush holder |
| 47 |  |
|
| 48 |  |
|
| 49 |  |
Stator assy\\\' |
| 50 |  |
Winde screen |
| 51 |  |
607 Bearing |
| 52 |  |
Rotor assy\\\' |
| 53 |  |
Motor support |
| 54 |  |
Self tapping screw 4*65 |
| 55 |  |
608 Bearing |
| 56 |  |
Aluminium support |
| 57 |  |
Self tapping screw 4*18 |
| 58 |  |
Blade assy\\\' |
| 59 |  |
|
| 60 |  |
|
| 61 |  |
|
| 62 | ||
| 63 | ||
| 64 | ||
| 65 | ||
| 66 | ||
| 67 | ||
| 68 | ||
| 69 | ||
| 70 | Brake pin | |
| 71 | Taper spring | |
| 72 | Pull sleeve | |
| 73 | Washer | |
| 74 | Taper spring | |
| 75 | E Retaining ring | |
| 76 | Small washer |
