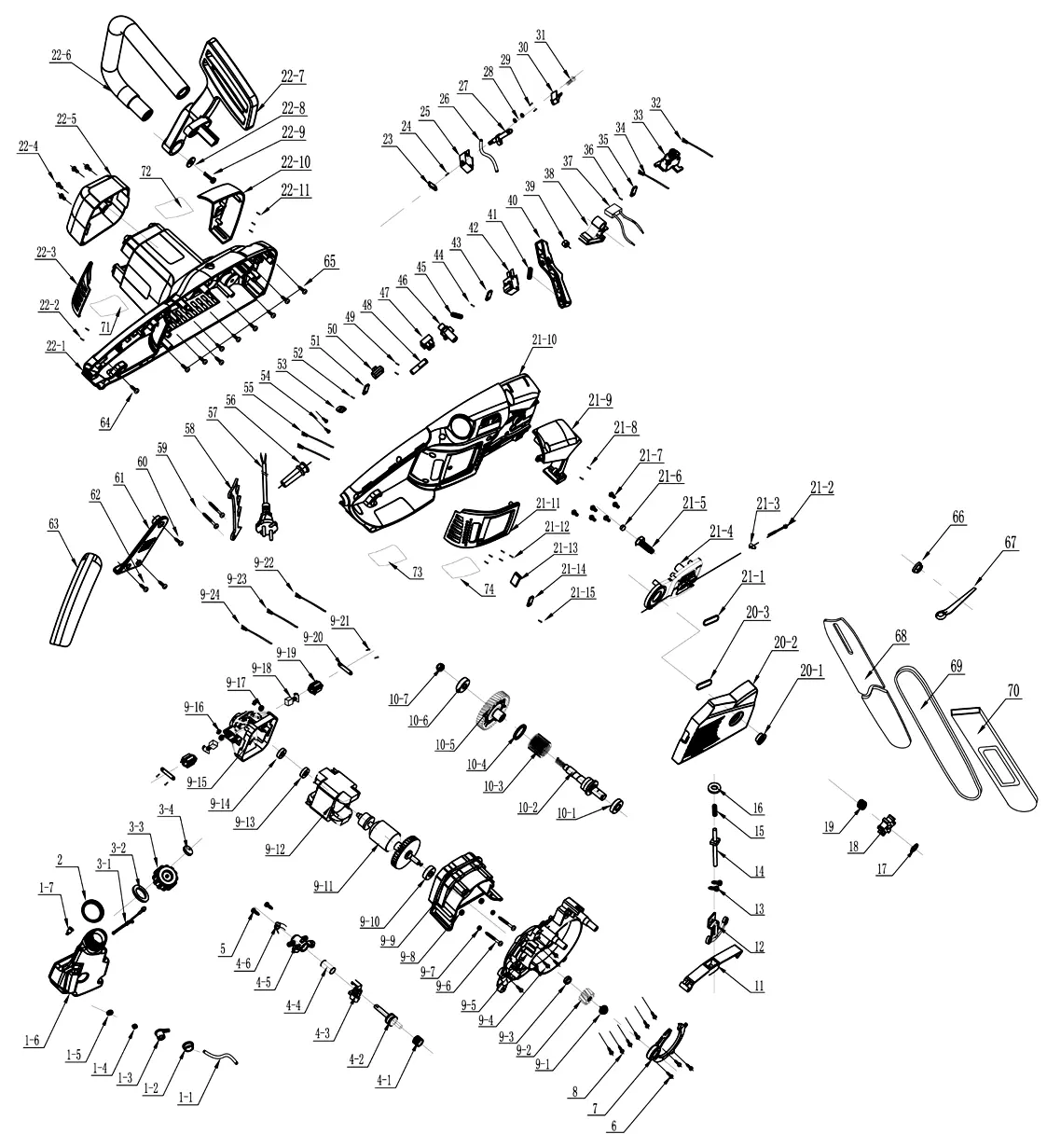

| П-п | Арт | Название |
|---|---|---|
| 1 | Oil tank assy\\\' | |
| 1-1 | Transparent oil tube | |
| 1-2 | Oil tank rubber sleeve | |
| 1-3 | Oil tank tie-in | |
| 1-4 | Sponge | |
| 1-5 | Oil tank stopper | |
| 1-6 | Oil tank | |
| 1-7 | Valve | |
| 2 | Oil tank airproof ring | |
| 3 | Oil tank cap assy\\\' | |
| 3-1 | Oil tank cap hook | |
| 3-2 | Airproof ring | |
| 3-3 | Oil tank cap | |
| 3-4 | Oil tank cap cover | |
| 4 | Pump assy\\\' | |
| 4-1 | Turbine gear | |
| 4-2 | Turbine | |
| 4-3 | Piston support | |
| 4-4 | Piston sleeve | |
| 4-5 | Pump body | |
| 4-6 | Pump extension ring | |
| 5 | Flange screw 3*12 | |
| 6 | Self tapping screw 4*12 | |
| 7 | Dustproof cover | |
| 8 | Self tapping screw 4*16 | |
| 9 | Motor assy\\\' 1800W | |
| 9-1 | Hex special nut | |
| 9-2 | Motor gear | |
| 9-3 | Motor gear bush | |
| 9-4 | Self tapping screw 5*16 | |
| 9-5 | Support | |
| 9-6 | Stator screw 4*60 | |
| 9-7 | Washer | |
| 9-8 | Washer | |
| 9-9 | Wind srceen | |
| 9-10 | 6000z Bearing | |
| 9-11 | Rotor assy\\\' | |
| 9-12 | Stator assy\\\' | |
| 9-13 | 627z Bearing | |
| 9-14 | Washer | |
| 9-15 | Motor rear frame | |
| 9-16 | Hex nut | |
| 9-17 | Washer | |
| 9-18 | Carbon brush | |
| 9-19 | Brush holder | |
| 9-20 | Brush holder clamp | |
| 9-21 | Self tapping screw 3*8 | |
| 9-22 | Connecting wire | |
| 9-23 | Connecting wire | |
| 9-24 | Connecting wire | |
| 10 | Output shaft assy\\\' | |
| 10-1 | Bearing 6000RS | |
| 10-2 | Output shaft | |
| 10-3 | Brake torsion spring | |
| 10-4 | Shaft sleeve | |
| 10-5 | Output shaft gear | |
| 10-6 | 608z Bearing | |
| 10-7 | Self locking nut | |
| 11 | Switch rod | |
| 12 | Brake fix board | |
| 13 | Sunk self tapping screw 4*15 | |
| 14 | Brake lever | |
| 15 | Brake rod spring | |
| 16 | Washer | |
| 17 | E Retaining ring | |
| 18 | Sprocket | |
| 19 | Tensioning spring | |
| 20 | End cap assy\\\' | |
| 20-1 | Shaft sleeve | |
| 20-2 | End cap | |
| 20-3 | End cap airproof | |
| 21 | Right housing assy\\\' | |
| 21-1 | Straining screw | |
| 21-2 | Tightening nut | |
| 21-3 | Out airproof | |
| 21-4 | Right housing inlay | |
| 21-5 | Machine screw | |
| 21-6 | Rubber washer | |
| 21-7 | Combination screw 4*10 | |
| 21-8 | Self tapping screw 3*8 | |
| 21-9 | Right housing airproof stopper | |
| 21-10 | Right housing | |
| 21-11 | Right cover | |
| 21-12 | Flange screw 3*8 | |
| 21-13 | Right housing airproof | |
| 21-14 | Clamp | |
| 21-15 | Self tapping screw 3*8 | |
| 22 | Left housing assy\\\' | |
| 22-1 | Left housing | |
| 22-2 | Flange screw 3*8 | |
| 22-3 | Left cover | |
| 22-4 | Self tapping srcew 5*16 | |
| 22-5 | Motor rear cover | |
| 22-6 | Front handle | |
| 22-7 | Protector board | |
| 22-8 | Break washer | |
| 22-9 | Self tapping srcew 5*20 | |
| 22-10 | Left housing connector cover | |
| 22-11 | Flange self tapping screw 3*8 | |
| 23 | Clamp | |
| 24 | Self tapping screw 3*8 | |
| 25 | Control switch | |
| 26 | Transparent oil tube | |
| 27 | Out oil base | |
| 28 | O rubber ring | |
| 29 | Self tapping screw 4*12 | |
| 30 | Brake spring reed | |
| 31 | Flange self tapping screw 3*12 | |
| 32 | Connecting wire | |
| 33 | Overcurrent protector | |
| 34 | Connecting wire | |
| 35 | Clamp | |
| 36 | Self tapping screw 3*8 | |
| 37 | Capacitance | |
| 38 | Middle connector rod | |
| 39 | Pulley | |
| 40 | Switch button | |
| 41 | Button spring | |
| 42 | Switch | |
| 43 | Clamp | |
| 44 | Self tapping screw 3*8 | |
| 45 | Anti lock button spring | |
| 46 | Anti lock button | |
| 47 | Connector | |
| 48 | Power light | |
| 49 | Tooth connector | |
| 50 | Swithc base | |
| 51 | Clamp | |
| 52 | Self tapping screw 3*8 | |
| 53 | Cable clamp | |
| 54 | Self tapping screw 4*12 | |
| 55 | Connecting wire | |
| 56 | Cable wire Assembly | |
| 57 | ||
| 58 | Buffer plate | |
| 59 | Self tapping screw 5*35 | |
| 60 | Self tapping screw 5*20 | |
| 61 | Handle support | |
| 62 | Self tapping screw 5*16 | |
| 63 | Cover | |
| 64 | Self tapping screw 4*12 | |
| 65 | Self trpping screw 5*16 | |
| 66 | Hex special nut M8 | |
| 67 | Spanner | |
| 68 | Guide bar | |
| 69 | Chain saw | |
| 70 | Blade sleeve | |
| 71 | Specification label | |
| 72 | Nameplate label1 | |
| 73 | Warning label | |
| 74 | Trade mark label2 |
